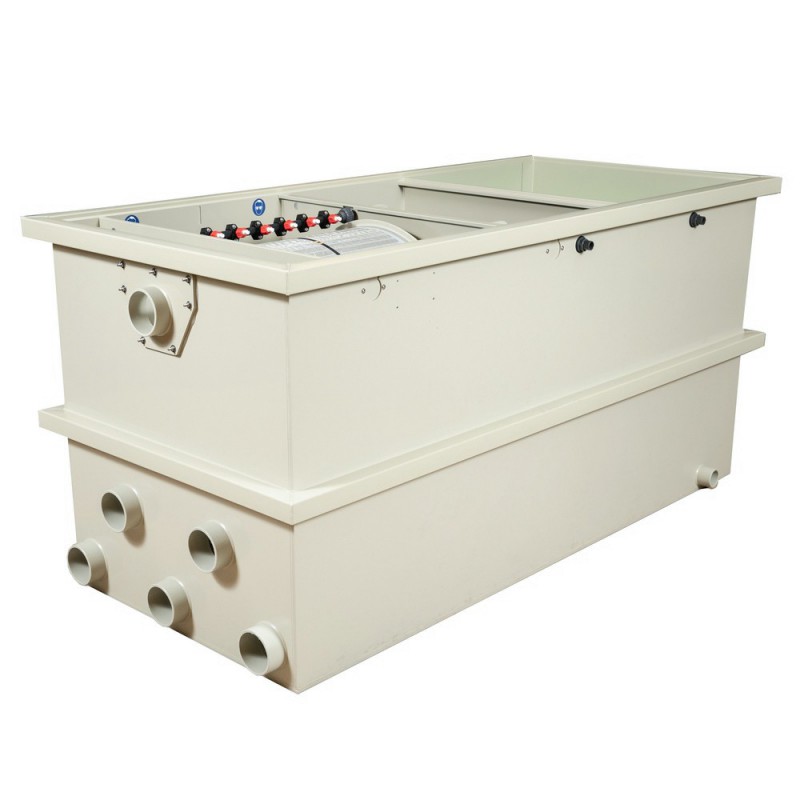

CL65-M RDF + Bio Chambers WIFI Controller - Sea Side Aquatics

This is our newest wifi / digital controller that only with with 2 probe sensor and with other add on options like:

• Wifi ( Included )
• SMS message ( Not Included )
• Temperature ( Not Included )
• Water Level Sensor ( Not Included )
• Water Top Off ( Not Included )
• Force Cleaning ( Included )
• Automatic Waste Tray Wash ( Included )
• and many more features please click on the below link to have access to the pdf files

Wifi Version Instruction

Technical details

CL65-M

Maximum Flow 65 m3/h

Gravity / Airlift / Pump feed

Pump Version has 30% less capacity

Water running height 12 cm

Material:

Housing PP 10/15 mm / Drum PP 15 mm

RVS 316/304 / UV resistant Seal

Precise CNC machine cut PP-construction

Specifications:

Standard inputs and outputs acc. drawing

Changes to inputs and outputs possible

1 x 110 mm Waste Outlet

Diameter of drum 60 cm x 50 cm

Patented woven 75/120 micron stainless steel mesh

2 x 90 mm Drum-Bypass

Removable spraybar

Removable waste water gutter / Waste claening optional

Installed Cleaningpump 5 Bar

50 NM drive engin with 4 RPM

With Lid

CL65M

2 Built-in air disc of 35 cm

Moving bed for 200 liter

Mat Chamber 300 liter

Wifi Digital Control panel:

Automatic cleaning, plug and play with Sensor

Manual operation run/wash

Cleaning (turn/flushing) time adjustable

Cleaning level adjustable

3 plugs to have control over Drum filter motor, Cleaning and Pond-pump

Standard dry run protection for pond pump

All components built into modules wich quickly changeable

Comes with detailed instructions

CE approved
