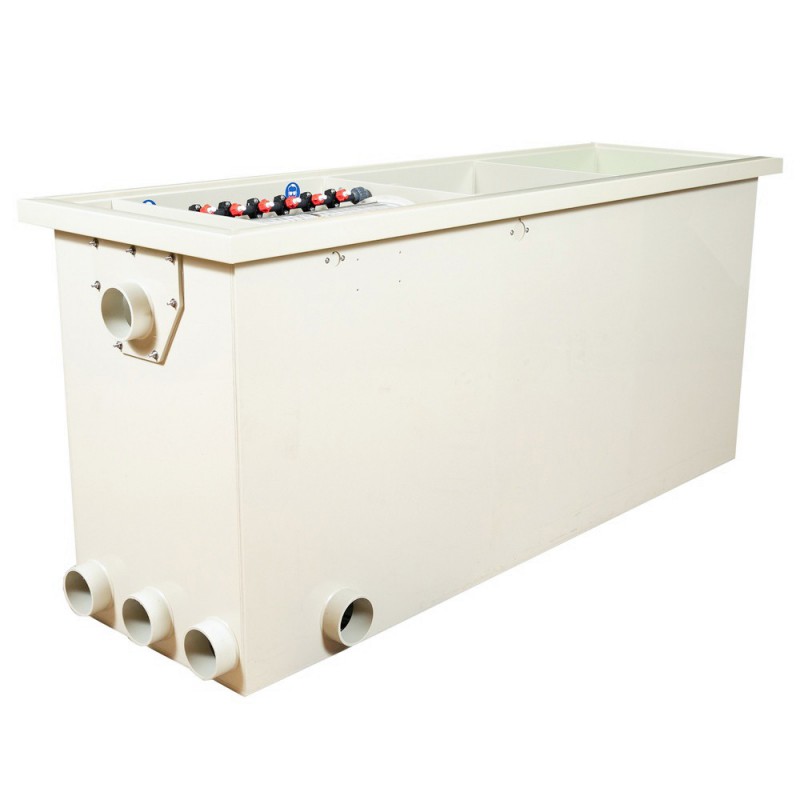

CL35-L RDF + Bio Chambers WIFI Controller - Sea Side Aquatics

CL35-L RDF + Bio Chambers - Sea Side Aquatics

Visit Here For PDF Drawing Of This Unit



Our site is SSL secured and all payments are process securely by Paypal.



We ship with UPS or USPS worldwide.



All items are brand new and comes fully warranty.

Description
Technical details CL35-L
 This is our newest wifi / digital controller that only with with 2 probe sensor and with other add on options like:
  • Wifi ( Included )
  • SMS message ( Not Included )
  • Temperature ( Not Included )
  • Water Level Sensor ( Not Included )
  • Water Top Off ( Not Included )
  • Force Cleaning ( Included )
  • Automatic Waste Tray Wash ( Included )
  • and many more features please click on the below link to have access to the pdf files

Wifi Version Instruction
Maximum Flow 35 m3/h
Gravity / Airlift / Pump feed
Pump Version has 30% less capacity

Water running height 12 cm

Build In Wifi Digital Controller

Material:

Housing PP 10/15 mm / Drum PP 15 mm
RVS 316/304 / UV resistant Seal
Precise CNC machine cut PP-construction

Specifications:

Standard inputs and outputs acc. drawing
Changes to inputs and outputs possible
1 x 110 mm Waste Outlet
Diameter of drum 40 cm x 50 cm
Patented woven 75/120 micron stainless steel mesh
2 x 90 mm Drum-Bypass
Removable spraybar
Removable waste water gutter / Waste claening optional
Installed Cleaningpump 5 Bar
50 NM drive engin with 4 RPM
With Lid


CL35L

2 Built-in air disc of 35 cm
Moving bed for 125 liter helix
Moving bed for 125 liter helix


Control panel:

Automatic cleaning, plug and play with Sensor
Manual operation run/wash
Cleaning (turn/flushing) time adjustable
Cleaning level adjustable
3 plugs to have control over Drum filter motor, Cleaning and Pond-pump
Standard dry run protection for pond pump
All components built into modules wich quickly changeable
Comes with detailed instructions
CE approved
