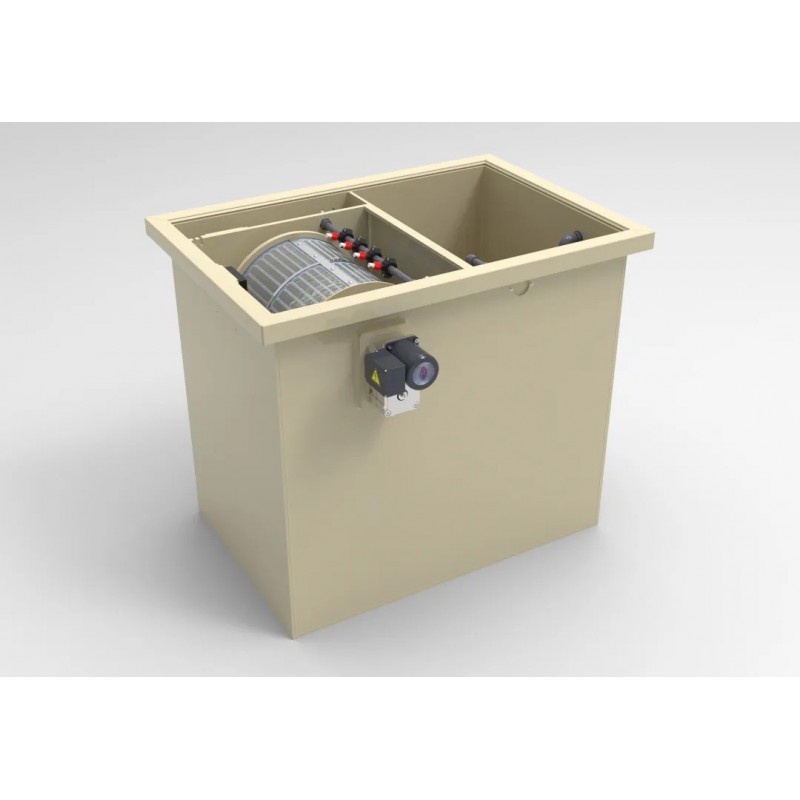

C-22 Combi RDF - Sea Side

Unit comes with  bag of k1 media, air pump, external cleaning up ( required installation )

Pictures might show internal cleaning pump, however this version will have external booster/cleaning pump

Specifications C-22

MAX FLOW 5800GPH
Pond suggested 15000GAL
Standard flow is 22 m3 / h
Gravity / Airlift / Pump fed
Installation height 17 cm

Material:

PP 15 mm housing / PP 20 mm drum
Stainless steel 316/304 / Silicone seal

Specifications:

2 x 110 mm inputs
2 x 110 mm outputs ( 2 extra 110 mm outputs for pump fed )
110 mm waste water drain
Diameter drum 40 x 40 cm
Screen panel 75 micron stainless steel 316
Removable waste water container
Spray bar with removable mounting, high pressure PVC 40 bar Cover
Media 200L
Air Disc 35cm
Air Disc Connection 20/25mm
Control box on filter
Turn / flush manual operation
Rinse level adjustable
Turn / rinse time adjustable

All components assembled in modules and therefore quickly interchangeable
