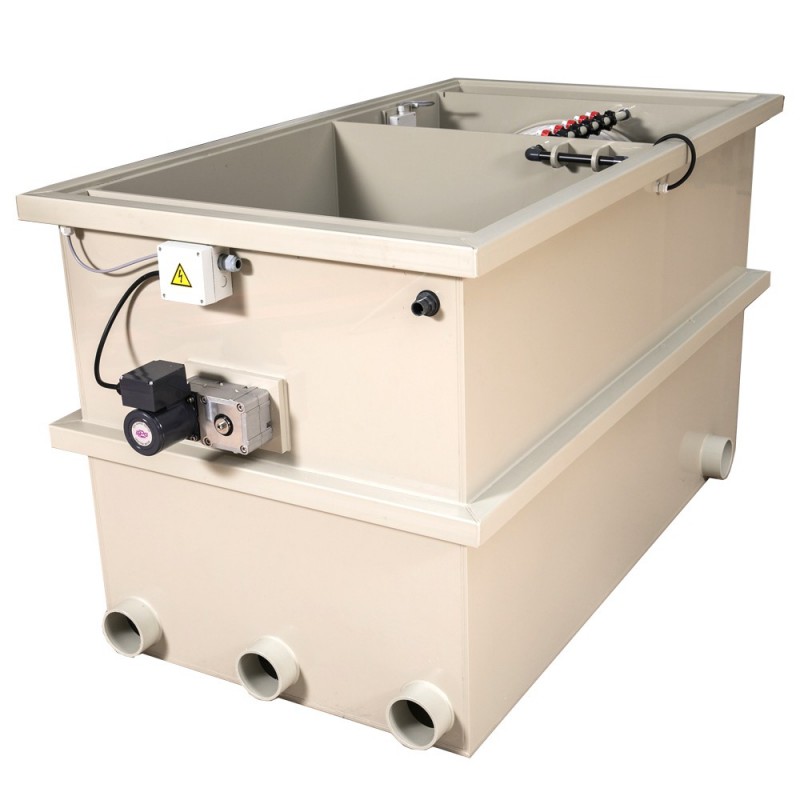

CL-65 Wifi Version Combi RDF - Sea Side

Unit comes with  bag of k1 media, air pump, external cleaning up ( required installation )

Specifications CL-65

This is our newest wifi / digital controller that only with with 2 probe sensor and with other add on options like:

• Wifi ( Included )
• SMS message ( Not Included )
• Temperature ( Not Included )
• Water Level Sensor ( Not Included )
• Water Top Off ( Not Included )
• Force Cleaning ( Included )
• Automatic Waste Tray Wash ( Included )
• and many more features please click on the below link to have access to the pdf files

Wifi Version Instruction

Max Flow 17000GPH
Pond Suggested 40000GAL
Standard flow is 65 m3 / h
Gravity / Airlift / Pump fed
Installation height 14 cm

Material:

PP 15 mm housing / PP 20 mm drum
Stainless steel 316/304 / Silicone seal

Specifications:

3 x 110 mm inputs
3 x 110 mm outputs ( 2 extra 110 mm outputs for pump fed )
110 mm waste water drain
Diameter drum 60 x 50 cm
Screen panel 75 micron stainless steel 316
Removable waste water container
Spray bar with removable mounting, high pressure PVC 40 bar Cover
Media 350L
Air Disc 35cm
Air Disc Connection 20/25mm
Control box on filter
Turn / flush manual operation
Rinse level adjustable
Turn / rinse time adjustable

All components assembled in modules and therefore quickly interchangeable
